Nonwoven Geotextile
ZHL
BG-01-ZHL

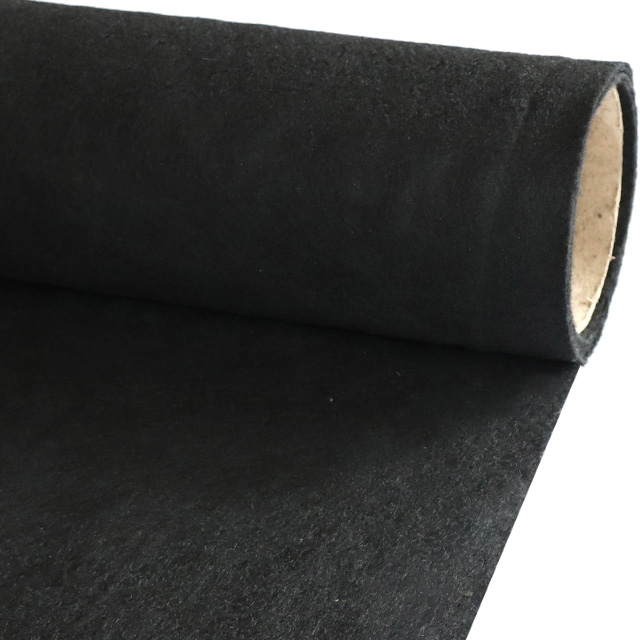

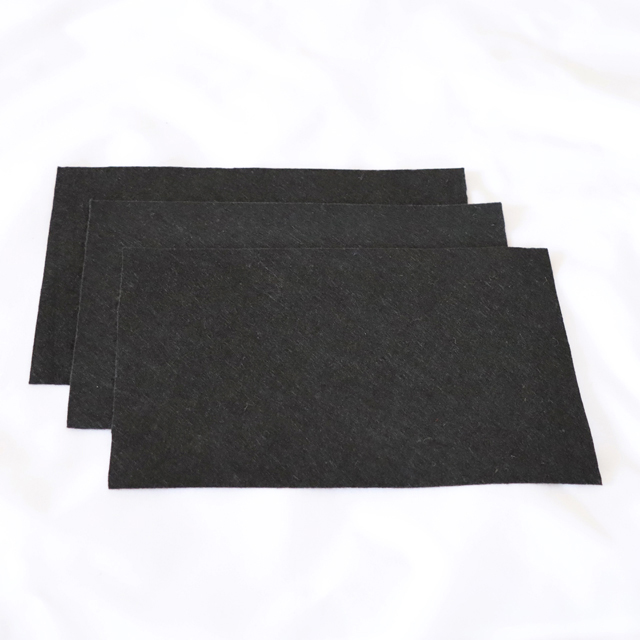

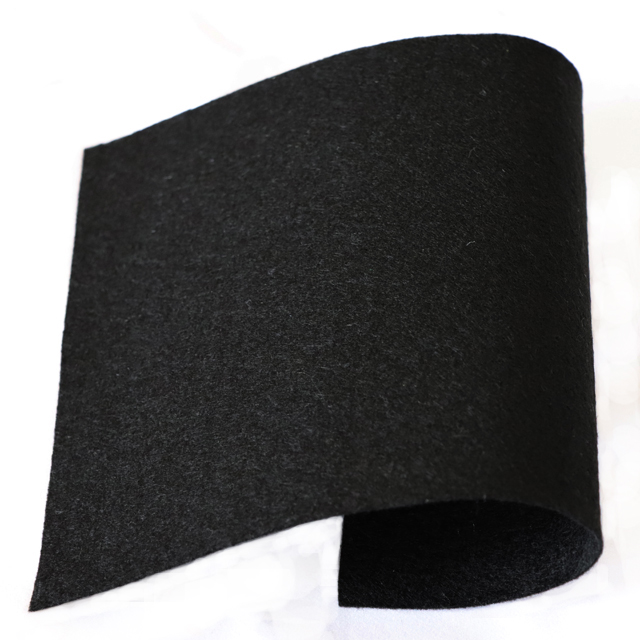

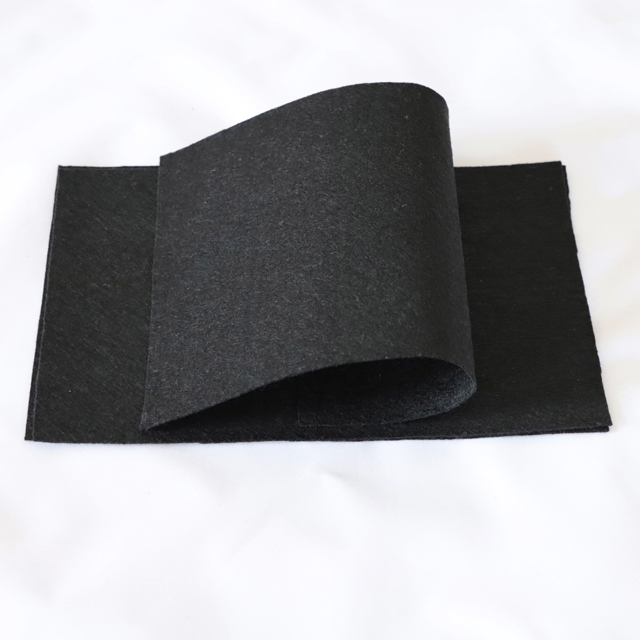

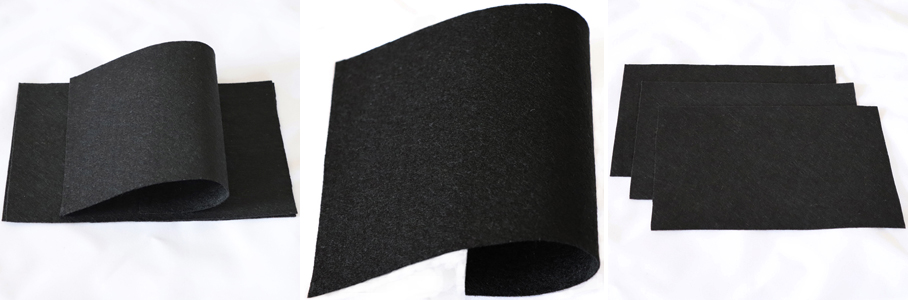

Needle Punch Black Nonwoven Geotextile Fabric
Product Specifications:
| Material | Polypropylene or Polyester |
Technology | Non-woven Needle Punch |
Regular Color | Black |
Heat Bonded Treatment | Single Side, Double Sides |
Regular Weight | 100GSM, 110GSM, 120GSM, 150GSM, 160GSM, 200GSM, 500GSM |
Max Width | 6 Meter |
Feature | Separation, Reinforcement, Filtration, Drainage, Corrosion Resistance |
Usage | Construction project, Water Conservancy, Railway Highway |
Technical Data Reference:
| Propiedades | Testing Method | Unit | Test Value | ||||||||||
| 125NT | 130NT | 140NT | 145NT | 145NT SP | 150NT | 180NT | 225NT | 275NT | 350NT | 360NT SP | |||
| Mechanical Properties | |||||||||||||
| Tensile Strength GRAB | D 4632 | N(Lb) | 400(90) | 470(106) | 500(113) | 700(158) | 729(162) | 703(158) | 980(221) | 1165(262) | 1310(295) | 1530(345) | 1230(277) |
| Elongation | D 4632 | % | ＞50 | ＞50 | ＞50 | ＞50 | ＞50 | ＞50 | ＞50 | ＞50 | ＞50 | ＞50 | ＞70 |
| Trapezoidal Tear Resistance | D 4533 | N(Lb) | 164(37) | 190(43) | 210(47) | 260(59) | 295(66) | 295(66) | 350(79) | 400(90) | 470(106) | 570(128) | 230(52) |
| CBR Punching Resistance | D 6241 | KN(Lb) | 1.1(247) | 1.3(292) | 1.5(337) | 1.9(427) | 2.1(472) | 2.1(472) | 2.8(629) | 3.3(742) | 4.0(899) | 4.6(1034) | - |
| Hydraulic Properties | |||||||||||||
| Permittivity | D 4491 | Sec-1 | 2.1 | 2.1 | 1.7 | 1.7 | 1.5 | 1.5 | 1.0 | 1.0 | 0.6 | 0.4 | - |
| Permeability | D 4491 | cm/seg | 27×10-2 | 29×10-2 | 25×10-2 | 29×10-2 | 27×10-2 | 27×10-2 | 20×10-2 | 22×10-2 | 17×10-2 | 12×10-2 | 6×10-2 |
| Flow Rate | D 4491 | L/min/㎡ | 5800 | 6120 | 4750 | 4800 | 4400 | 4400l | 2930 | 2700 | 1920 | 1200 | 1600 |
| TAA Apparent Opening Agenda | D 4751 | mm(Tamiz) | 0.212(70) | 0.180(80) | 0.180(80) | 0.150(100) | 0.150(100) | 0.150(100) | 0.106(140) | 0.125(120) | 0.106(140) | 0.090(170) | 0.090(170) |
| Physical Properties | |||||||||||||
| UV Stability | D 4355 | %@500 Hrs | ＞70 | ＞70 | ＞70 | ＞70 | ＞70 | ＞70 | ＞70 | ＞70 | ＞70 | ＞70 | - |
| Thickness | ASTM D 5199 | mm | 1.3 | 1.4 | 1.5 | 1.7 | 1.8 | 1.8 | 2.0 | 2.2 | 2.8 | 2.9 | 2.0 |
| Roll Width | Measured | m | 3.5-3.8-4.0 | 3.5-3.8-4.0 | 3.5-3.8-4.0 | 3.5-3.8-4.0 | 3.5-3.8-4.0 | 3.5-3.8-4.0 | 3.5-3.8-4.0 | 3.5-3.8-4.0 | 3.5-3.8-4.0 | 3.5-3.8-4.0 | 3.5-3.8-4.0 |
| Long Roll | Measured | m | 160 | 150 | 130 | 120 | 120 | 120 | 130 | 120 | 100 | 80 | 80 |
| Roll Area | Calculated | m2 | 560-608-640 | 525-570-600 | 455-494-520 | 420-456-480 | 420-456-480 | 420-456-480 | 455-494-520 | 420-456-480 | 350-380-400 | 280-304-320 | 280-304-320 |
Packaging & Load Quantities:
| Goetextile | 100GSM | 120GSM | 150GSM | 160GSM |
| 1 × 40HQ | 88000 m2 | 75000 m2 | 65000 m2 | 61000 m2 |
FAQ：
Are you a factory or just a trade company?
We're an Industry and Trade Corporation, with a standard production workshop for nonwoven geotextile.
Also, we very welcome clients to visit our factory at any time and talk face-to-face so that you could know more about us.
What color of non-woven geotextile can you produce?

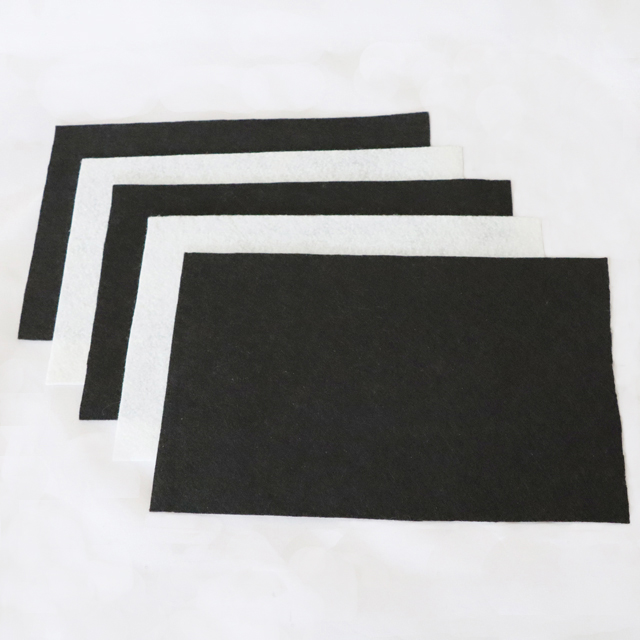

Almost of clients we worked with often purchased balck color geotextile, and the rest of ones bought white, grey, green, pink and yellow. Certainly, if you want us to make other colors nonwoven geotextile, it can be acceptable.
How can I get a sample before purchasing?
Tell us your requirement and send us your contact information, then our similar samples shall be arranged to you shortly by internation express.
What's MOQ?
If our stock don't have this nonwoven geotextile customers want, MOQ is 10000m2 per color.
If our stock have this non woven geotextile customers want, no MOQ limits.
Could you please produce this needle punched nonwoven geotextile as technical data customers offer?
Sure thing, once we have the techical data from customers, our sampling department shall manufacture samples first as requirement, and would not produce bulk production until customer's approve our samples.
What deliveryt ime shall it be for a 40feet container?
Regularly, it shall be around 10 days while 20 days in boom season.
Certainly, we can do our best to short production time sometime if your order shall be urgent.
Do you mind tell us what your main market is?
As our leader team have been focus on product quality, this nonwoven geotextile we produced have been exported to all over the world and are very welcomed.
Meanwhile, our main cooperative customers are from Australia, New Zealand, U.S., France, Germany, Russia, Colombia, Peru, Ecuador.
How about the payment term for your company?
If it’s new clients, 30% down payment before orders and the final payment against the copy of Bill of Lading in 5 days.
If it’s regular clients, 10-20% deposit and the rest against the copy of Bill of Lading in 20 days.
